MADE IN USA

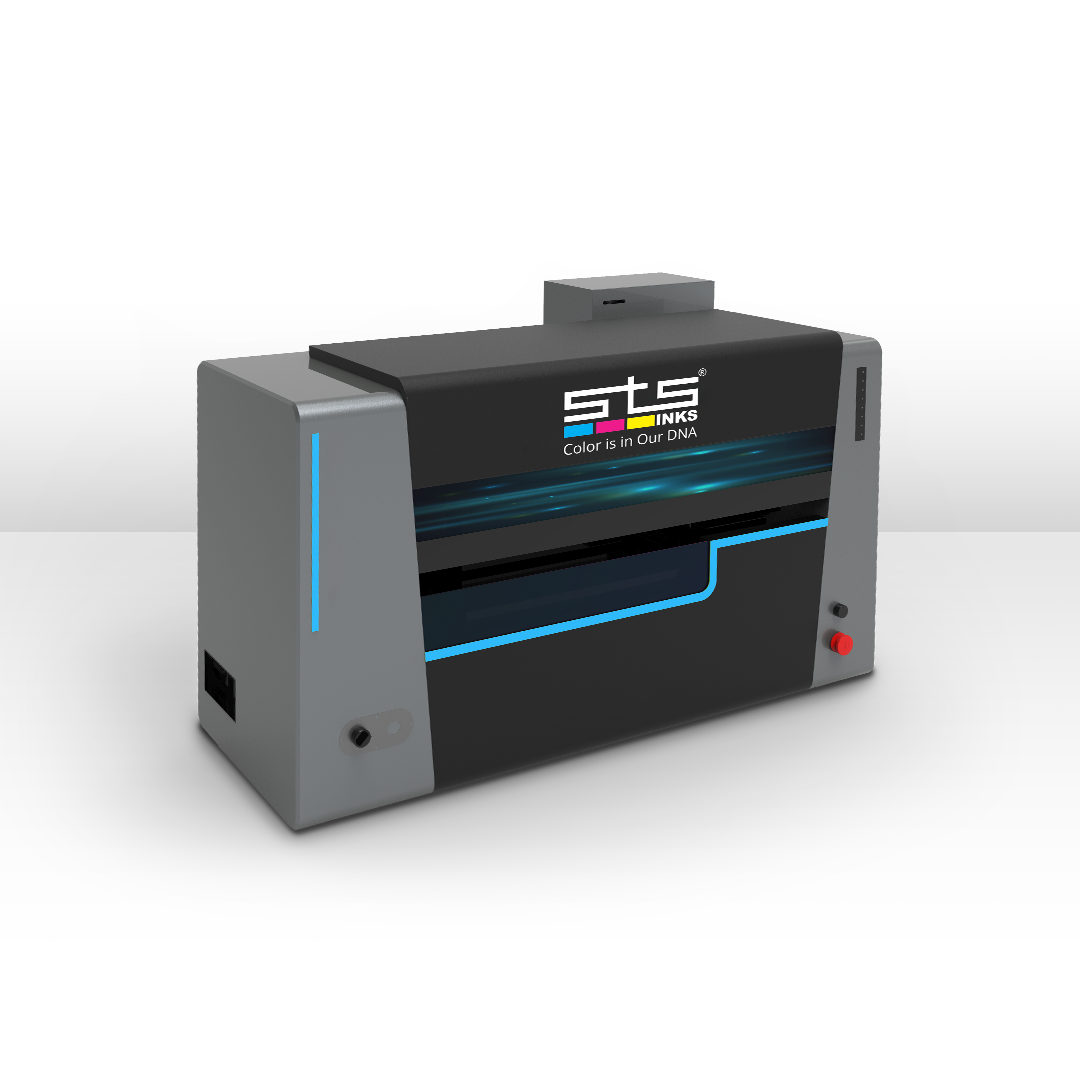

UV DTF Cylinder Printer C-3
Description
APPLICATION
Discover The Print Difference
STS C-3 Cylinder UV printer is a printer specially designed for printing round objects, with a wide range of applications and no material restrictions, such as stainless steel metal thermos cups, wine bottles, cosmetic bottles, tea cans, cans, etc. used in daily life.
DETAILS
Professional Features Digital Cylindrical UV Printer
VARIABLE INK DROP TECHNOLOGY
Variable Ink Drop Technology controls the voltage that powers the printhead components so that the same nozzle can drop ink down in various sizes as needed which produces high quality images at high speed with vibrancy and smooth gradations.

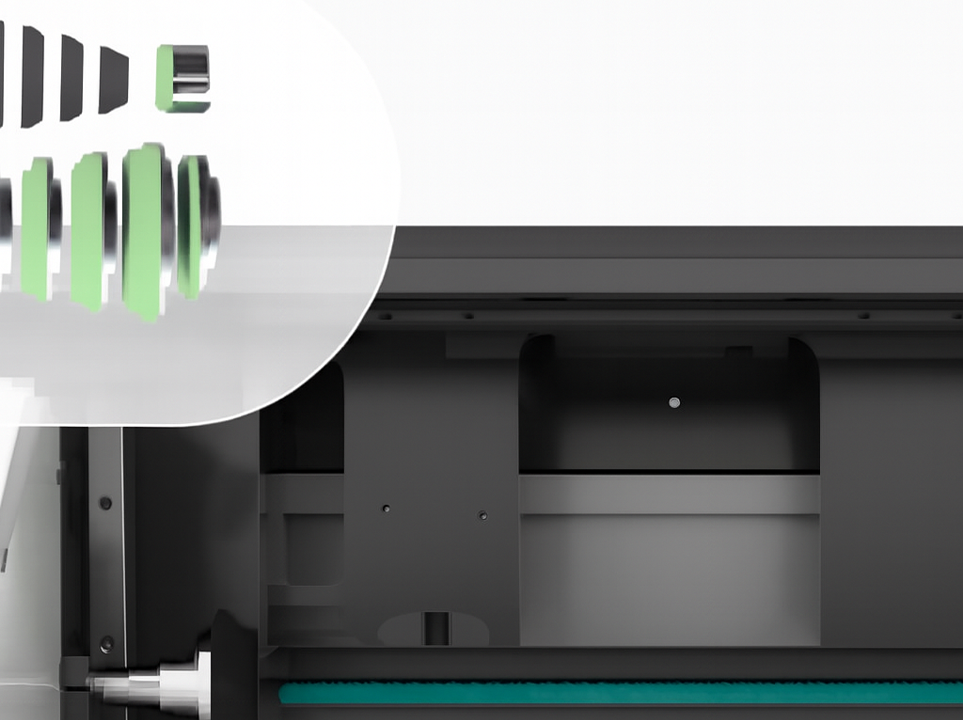

AUTOMATIC BOTTLE ADJUSTMENT
The built-in sensors detect the varying sizes of each bottle and automatically adjust the settings to ensure precise printing, eliminating the need for manual adjustments.

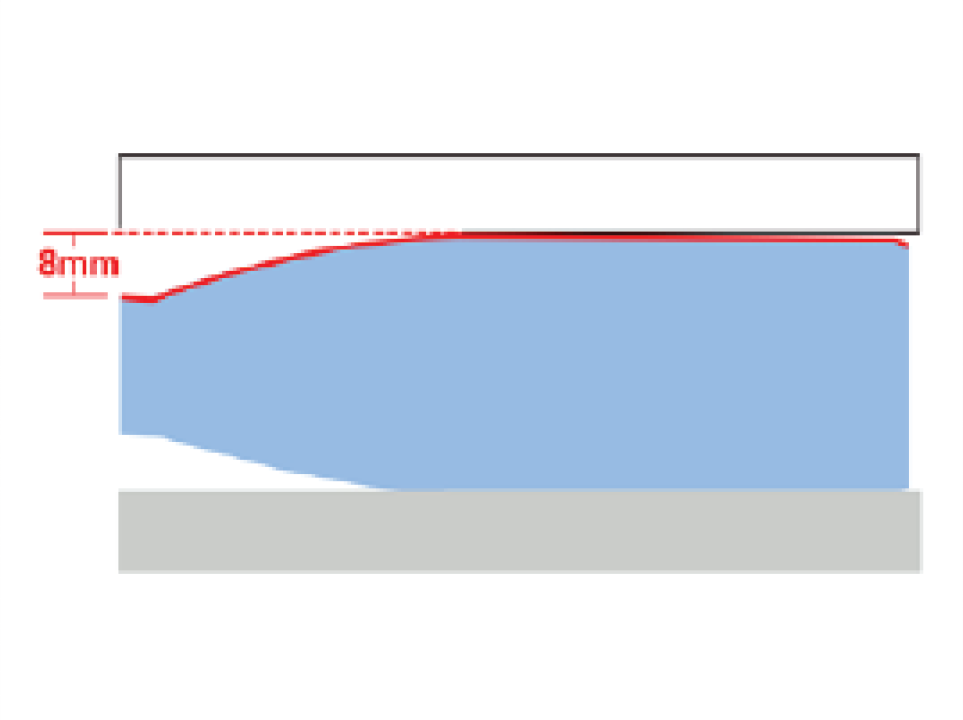

POWERFUL HIGH-DROP PRINTING
Supports 8mm high-drop printing, with automatic laser measurement of product shape for precise positioning. Enables seamless and accurate printing on irregularly shaped products.

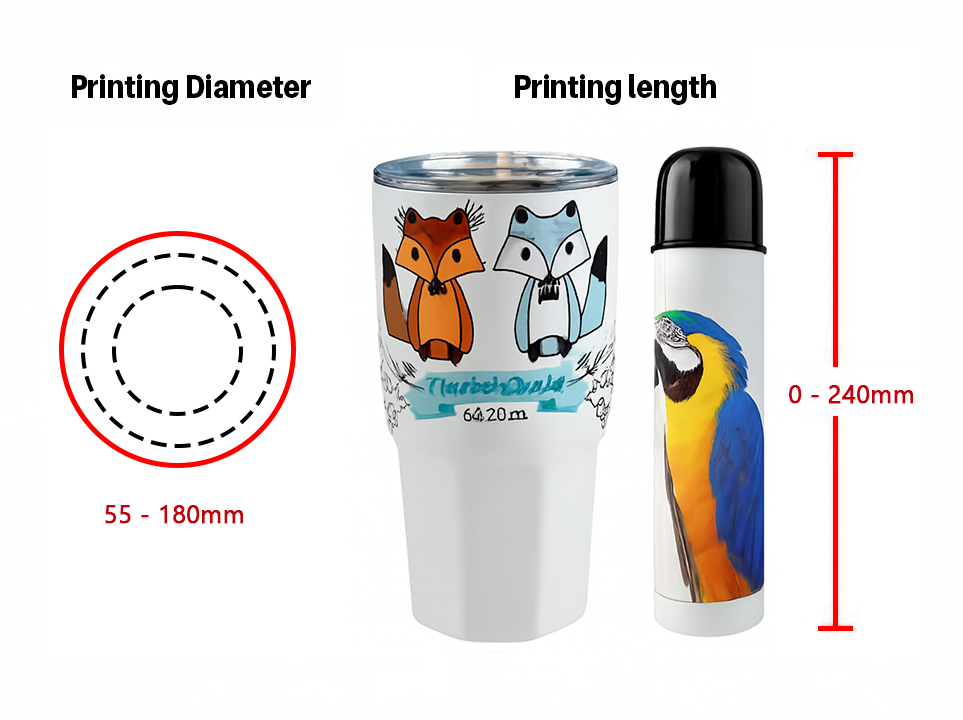

VARIOUS PRINT SIZES
The system supports a printing length from 0 to 9.4 inches and a printing diameter from 2.1 to 7 inches, enabling compatibility with a wide variety of products, such as thermos cups, cylindrical electronic devices, and wine bottles. This versatile solution offers extensive application across multiple industries.
STRONG ADHESION CAPABILITIES
Compatible with a wide range of printing materials, whether conical or cylindrical, transparent or opaque. It ensures awless printing on glassware, water bottles, candles, golf balls, baseballs, food cans, and other objects, delivering excellent adhesion for long-lasting results.
SPECIFICATION
Product specifications Cylindrical UV Printer
|
PRINTER NAME |
Cylindrical UV Printer |
|
MODEL |
STS C-3 |
|
PRINTING RESOLUTION |
720 DPI 2880 DPI |
|
NUMBER OF PRINT HEAD |
3 pcs |
|
PRINT HEAD |
Epson i1600 |
|
INK MODE |
CMYK + W + V |
|
PRINT SIZE |
0 - 240 mm | 0 - 9.44” Lenght, 55 - 180 mm | 2.16” - 7.08” Diameter, 12” Tape |
|
INK SYSTEM |
Siphon positive-pressure ink supply system |
|
INK TYPE |
Eco UV Curing Ink |
|
FILE FORMAT |
TIFF, JPEG, EPS, PDF, etc. |
|
RIP SOFTWARE |
Inedit | FlexiPRINT | CADLink |
|
VOLTAGE |
AC110V+/-10% |
|
INTERFACE TYPE |
High - Speed 3.0 USB cable |
|
OPERATING ENVIRONMENTS |
Temperature: 15°C - 30°C | 57°F - 86°F |
|
PLATFORM JIG |
Special printing fixture |
|
DIMENSIONS OF PRINTER (LxWxH) |
1340mm * 480mm * 730mm | 52.7” * 18.9” * 28.74” (LxWxH) |
|
RATED POWER |
1300W |
|
CURING SYSTEM |
LED UV curing system |
|
MACHINE WEIGHT |
134 kg | 295.419 lb |
