MADE IN USA

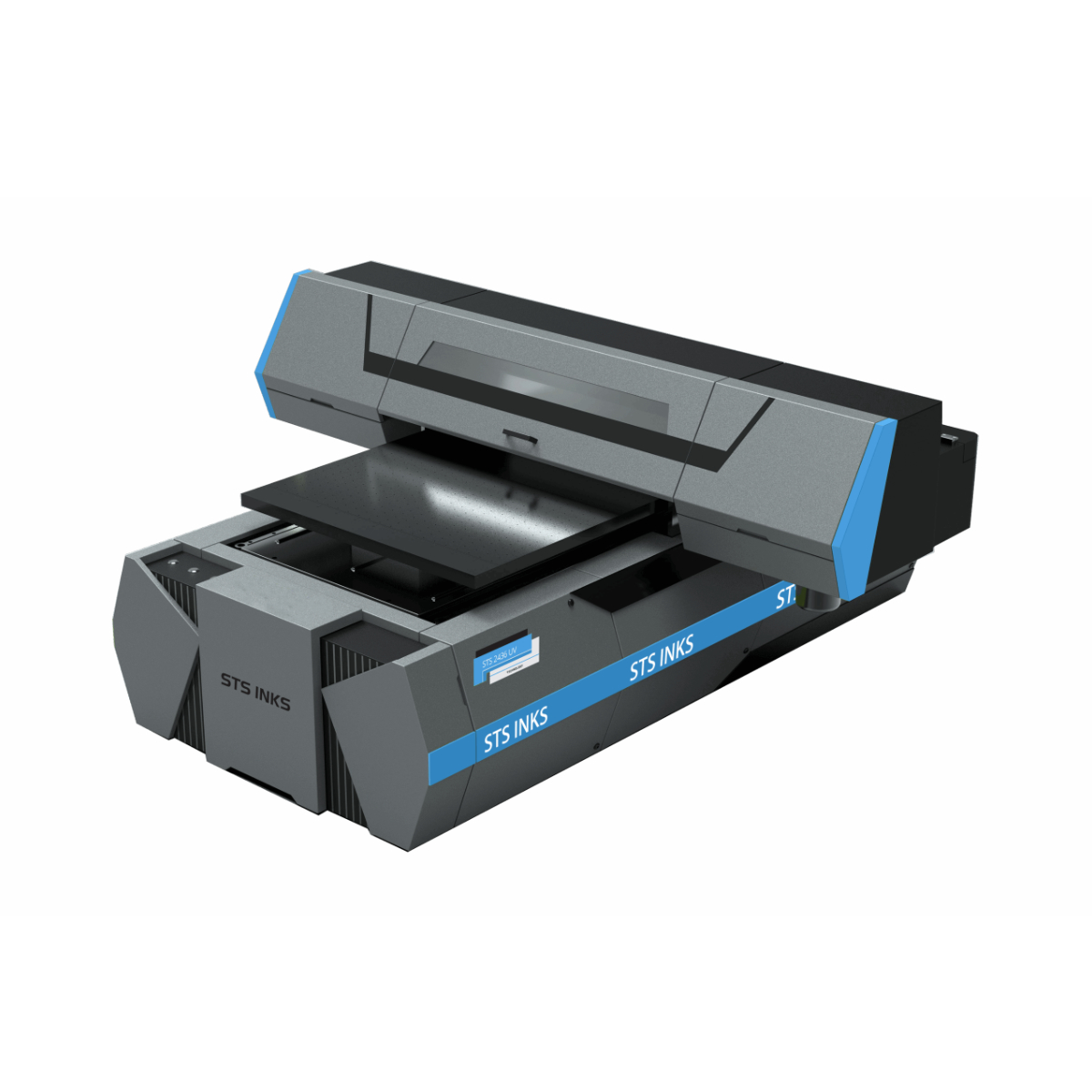

UV Flatbed 2436
Description
STS 2436 FLATBED
UV Printer

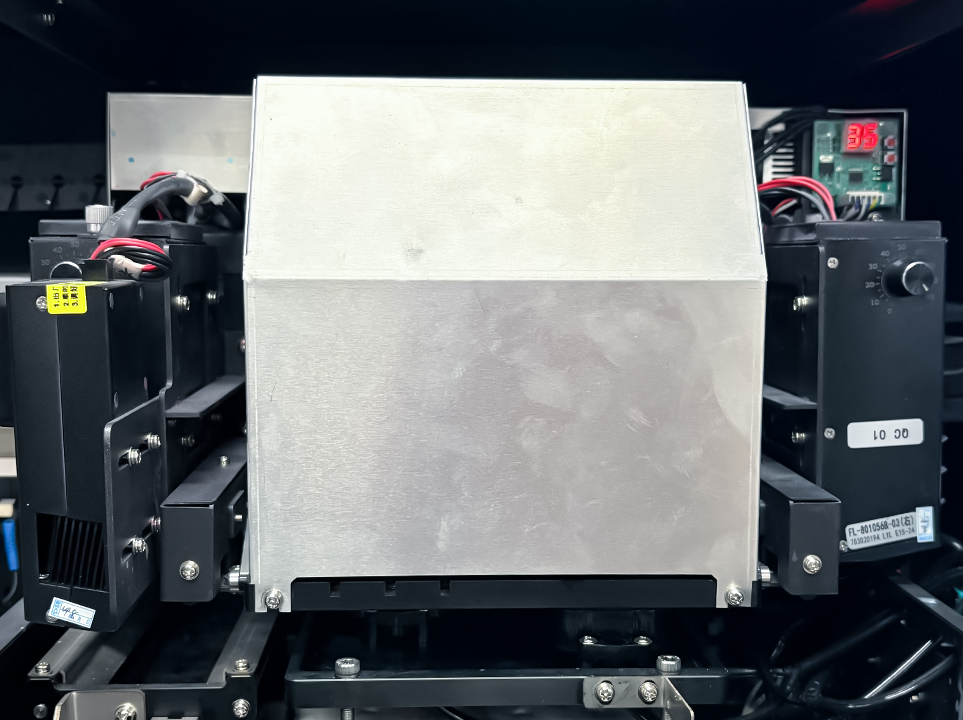

PRINT HEAD
MAX RESOLUTION
ECO-UV
Max print size
Epson 1600-u1
2400 dpi
eco-uv curing ink
600x900 mm 23.62x35.43 in
new
features
- 3 Head UV-LED High-Productivity Flatbed Printer
- CMYK + WHITE & VARNISH
- Print varnish and 3D relief effects
- Optional cylinder fixture, adaptor supports 360º rotation printer
- Fast curing inks for a variety of applications
Machine
Details
Print Completion Process
Following the completion of printing production, you have two options: place the printer in a flushing state. The printer will automatically flush every few minutes using ink. This prevents ink from solidifying in the ink train which will lead to clogging of the nozzles. The other option, at the end of the day, you can perform a print head clean and retire the printer for the next shift.
Print range / height
The printing carriage bar can be raised to a maximum height of 7″, which will accommodate most of the materials used for printing to a thickness of 0–7″.

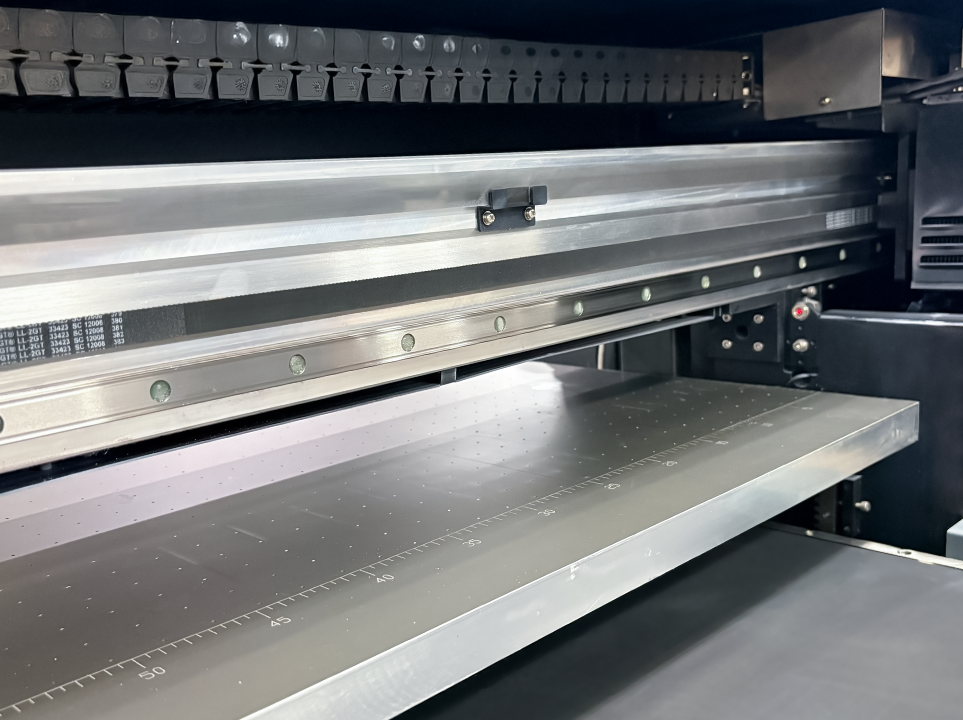

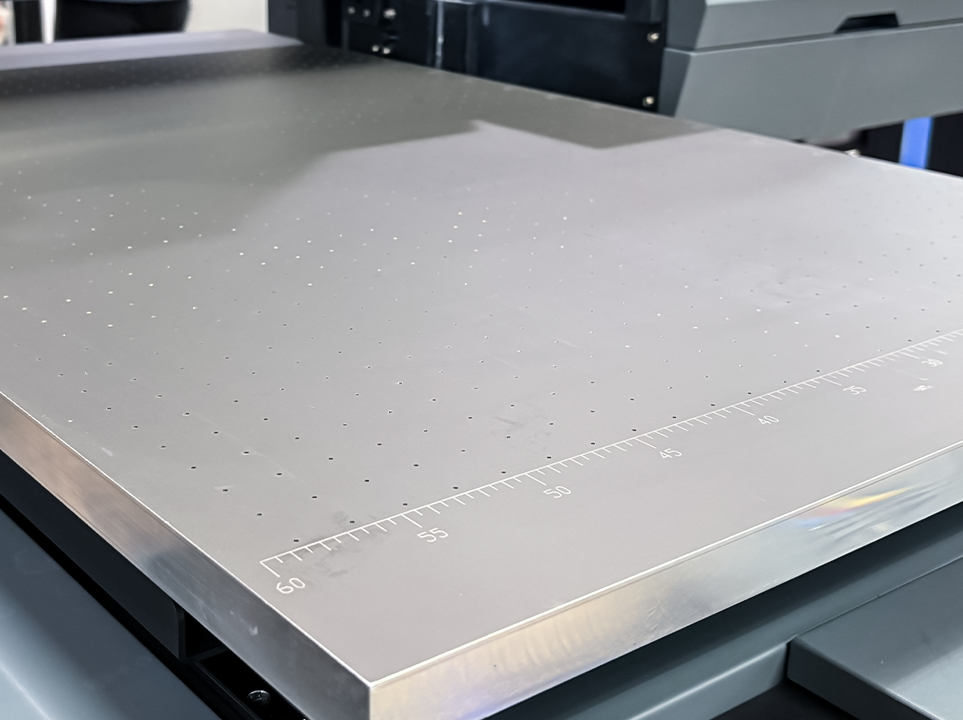

Hight precision vacuum table
The adsorption platform is made of a high-strength aluminum alloy plate. The high-precision drilling machine is used to drill holes in the plate. The turbo fan under the platform inhales through these holes to fix the material.
high realiability and safety features
The printer has sensors that detect head strikes or objects in the path of the print head to prevent damage to the head.
Machine
Parameters
|
MODEL |
STS UV 2436V |
|
PRINT FORMAT |
600x900 mm Ι 23.6x35.4 in |
|
PRINT HEAD |
EPSON 1600-U1*3 |
|
INK TYPE |
Eco-UV Curing Ink |
|
PRINT METHOD |
CMYK + W + Varnish |
|
PRINT DIRECTION |
Bi-Direction |
|
PRINT THICKNESS |
0 - 180 mm Print Height |
|
MAX PRINT RESOLUTION |
720 x 1200 dpi Ι 720 x 2400 dpi |
|
PRINT MODE |
CMYK + W / CMYK + W + V |
|
CYLINDER PRINT |
Optional |
|
HIGH DROP PRINT |
Up to 9 mm |
|
RIP SOFTWARE |
IneditTM neoStampa Ι CADlinkTM Ι Digital Factory 12 |
|
VOLTAGE |
AC 100 - 200V ± 10% |
|
FILE FORMAT |
PDF / JPG / PNG / EPS / AI / PSD / TIFF |
|
WORK ENVIRONMENT |
Temperature: 67 - 79 F° / Humidity: 35% - 65% |
|
NET WEIGHT |
194 Kg Ι 427.7 lb |
|
PRINT SIZE |
1696x1595x719 mm / 66.7x62.7x28.3 in (LxWxH) |
|
PACKAGING SIZE |
1830x1750x1200 mm / 72x68.8x47.8 in (LxWxH) |
|
APPLICATIONES |
PVC / PET Film / Acrylic / Wood / Glass, etc. |
|
INCLUDED ACCESSORIES |
Power Card, Network cable, RIP and Management Print Software, instruction manual, etc |
APPLICATION
Discover the print different
Boost your business with the
STS 2436 UV Flatbed Printer
A solution designed for those who demand quality, versatility, and professional results. Print on wood, glass, acrylic, metal, and more with vibrant colors, high‑density white, and premium varnish effects that elevate any product.
With resolutions up to 720×2400 dpi, a high‑precision vacuum table, and EPSON 1600‑U1 printheads, you get stable, detailed, and consistent production on every project. Perfect for anyone who needs to print on multiple substrates without compromising quality.
Because when creativity has no limits, you need a printer that can keep up. The STS 2436 UV Flatbed Printer transforms ideas into high‑impact pieces, opening new opportunities to grow, innovate, and stand out.
