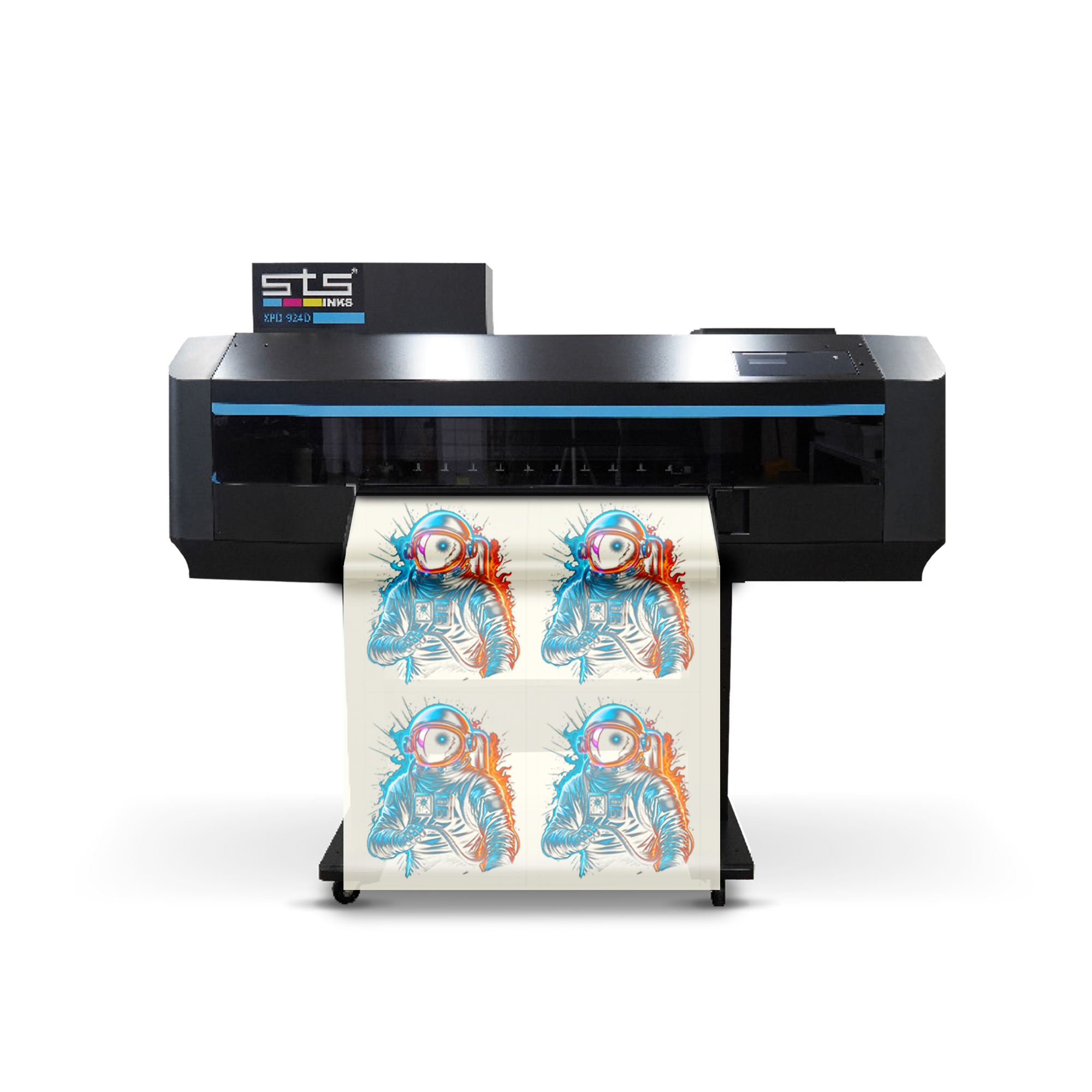

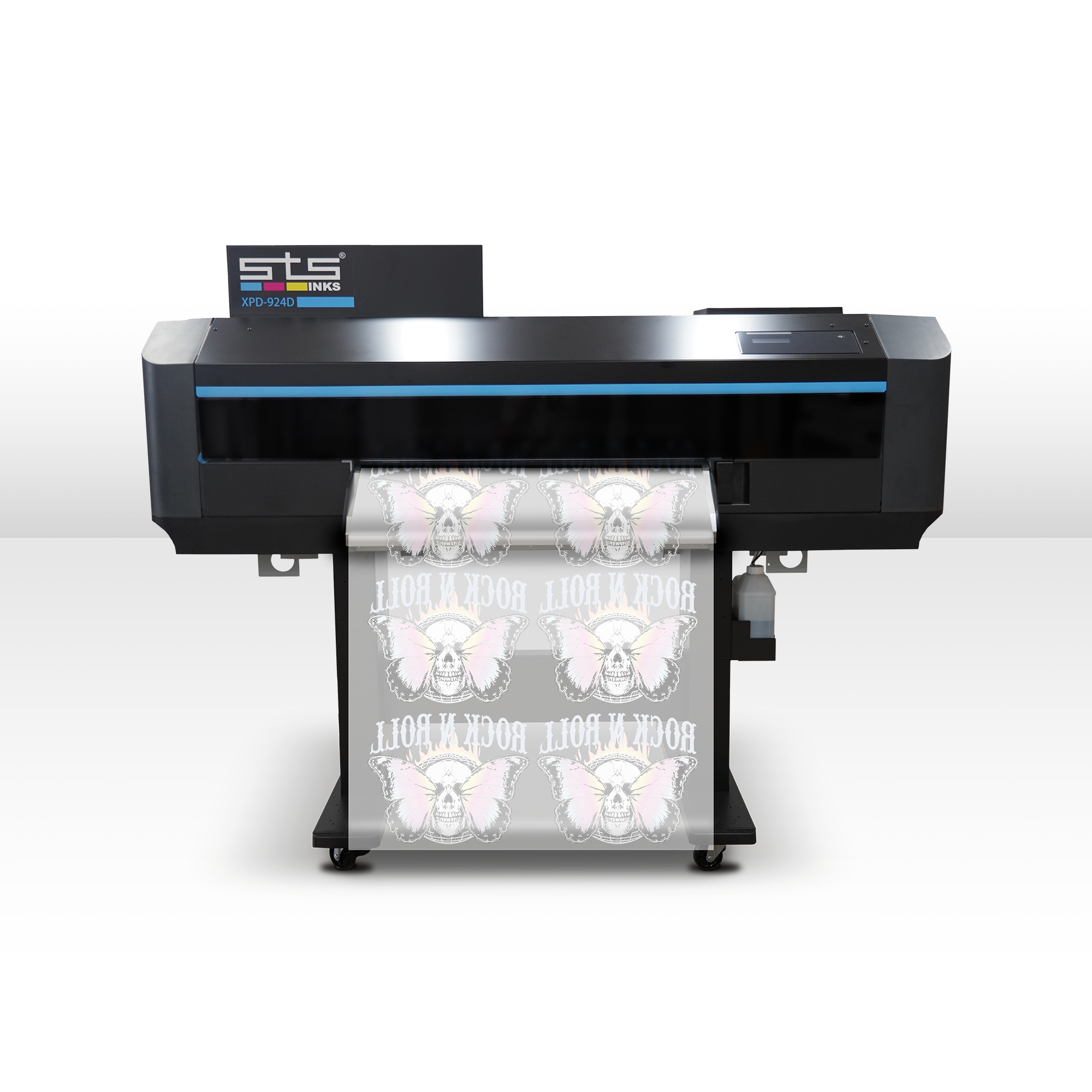

    The STS XPD-924D Printer
    The STS XPD-924D Printer - Image 2
    The STS XPD-924D Printer - Image 3

    The STS XPD-924D Printer

    $24,995

    GET A QUOTE
    SKU STS.XPD-924.DTF Categories , , Tag

    THE BEST

    STS 24” XPD 924 DTF Printer

    Built for Professionals
    By Professionals

    The XPD-924D is packed with standard features such as:

    • Dropmaster 2 (Automatic Bi-Directional Alignments)
    • Feed Master (Automatic Feed Roller Adjustment)
    • i-screen Print Effects- Multiple Waveforms that Mitigate Banding
    • Media Tracker (Roll Remainder Tracking)
    • White Ink Circulation
    • Auto Cleaning and Maintenance
    • Washability Test AATCC61-2A [AATCC 61 Method 2A]
    eco passport certificate
    financing
    Click here

    XPD-924D Speeds

    PRINTER MODE

    RESOLUTION

    PASS

    Printing Speed [m2/h]

    Printing Speed [lm/h]

    Printing Speed [lft/h]

    Time for 328 lft Roll [h]

    HIGH SPEED

    900×600

    3

    17.5

    188

    29.0

    3.5

    PRODUCTION

    600×1200

    4

    13.5

    145.0

    22.0

    4.5

    ENHANCED QUALITY

    900×1200

    6

    9.0

    96.0

    15.0

    6.7

    HIGH QUALITY

    1200×1200

    8

    6.7

    72.0

    11.0

    9.0

    characteristics

    • High-Speed Production – Maximize efficiency with rapid print output.
    • Cost-Effective Ownership & Operation – Minimize costs while maximizing performance.
    • Durable Transfers – Achieve longevity comparable to screen printing.
    • Exceptional Flexibility – Prints stretch and recover seamlessly.
    • Versatile Application – Adheres to any fabric with ease.
    • Fast Heat Press Time – Apply transfers in under 15 seconds.

    Features

    • High-precision Heavy-duty Aluminum Rail System for High Quality and Stable Printing.
    • Ease-of-use Side Mounted LAN and Power Plugs and LED Operation Panel.
    • New AccuFine HD Printheads Provide Faster Speeds with Exceptional Quality.
    • Built-in Sensors for Operator-Driven Automatic Bi-directional and Page feed Alignments.
    • Improved Front Dryer System for 20% Faster Ink Dry Times.
    • Internal LED Lighting for Unobstructed Print.
    • Updated Media Angles and Media Feeding Mechanism to Allow for Easy Loading and Page Feed for DTF Film.
    • Viewing and Maintenance Access.
    • Includes the Mutoh Status Monitor (MSM) Companion Software for Convenience and Efficiency: Records Print History, Job Cost Analysis, Remote Access.
    • Complete Turnkey Solutions that Produce Exceptional Transfers that are Super Soft and Colorful with Excellent Elasticity, and Washability which Creates the Industry’s Finest Hand Feel Transfers.

    Specifications

    PRINTING METHOD

    Drop-on-demand Micro
    Piezo Inkjet Technology

    PRINT HEAD HEIGHT

    Four-level adjustment:
    1.5mm, 2.0mm, 2.5mm, 4.0mm

    PRINT HEAD

    2 (staggered)

    MAX PRINT RESOLUTION

    1200×1200 dpi
    (1200/900/600/300 dpi print modes)

    MEDIA WIDTH

    600 cm 25″

    MEDIA CAPACITY

    ø 5.9” dia / 2” & 3”
    cores | Roll media 66lbs or less

    MAX MEDIA THICKNESS

    Low 1 0.3mm, Low2 0.8mm, Mid. 1.3mm, High 2.8mm

    MAX PRINTABLE WIDTH

    24.5 in

    MAX PRINT SPEED

    17.5 sqm/hr – 188 sqft/hr

    RIP SOFTWARE

    IneditTM neoStampa / CADlinkTM Digital Factory 12

    INTERFACE

    Gigabit-Ethernet
    (1000BASE-T)

    POWER REQUIREMENTS

    Four-level adjustment:
    1.5mm, 2.0mm, 2.5mm, 4.0mm

    PRINTING ENVIRONMENT

    Temperature: 68-77°F / 20-26° C
    Humidity: 40-55%

    POWER CONSUMPTION

    Main: Operation status 70W
    or less Standby: 30W or less

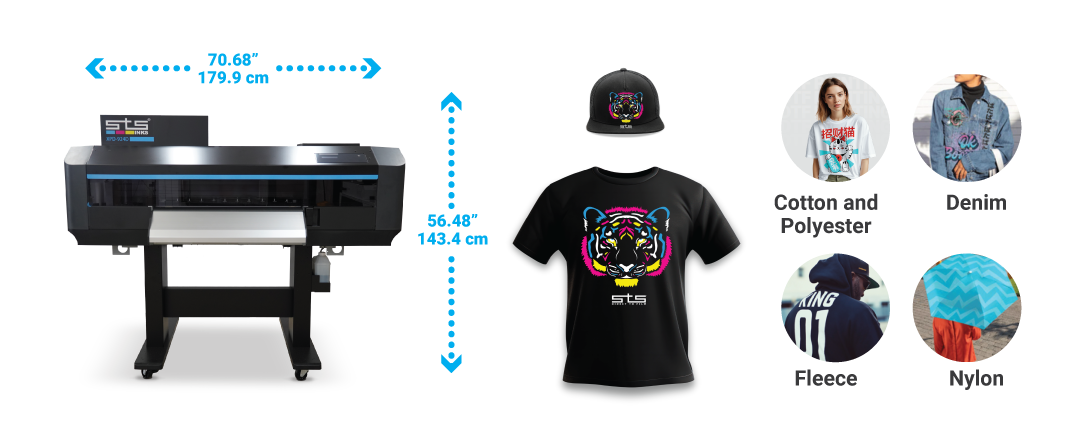

    DIMENSIONS (WxDxH)

    Printer including stand:
    70.68″x35.23″x56.48″ cover closed

    WEIGHT

    Body: 310Ib I Stand: 70.54Ib /
    Body: 140kg I Stand: 32kg

    INK TYPE

    DTF

    INK SET

    4 color (CMYK) | White

    VOLUME

    500 ml Direct to Film Inks
    Cartridge XPD2

    No. OF SLOTS

    6
